Crop Row Connector

Connect fragmented crop rows into continuous lines.

crop-row-connector is a Python package that solves a critical problem in precision agriculture:

When large orthomosaic images are processed tile-by-tile, crop rows that span multiple tiles get detected as separate fragments.

This tool reconnects these fragments creating complete crop row geometries for field analysis.

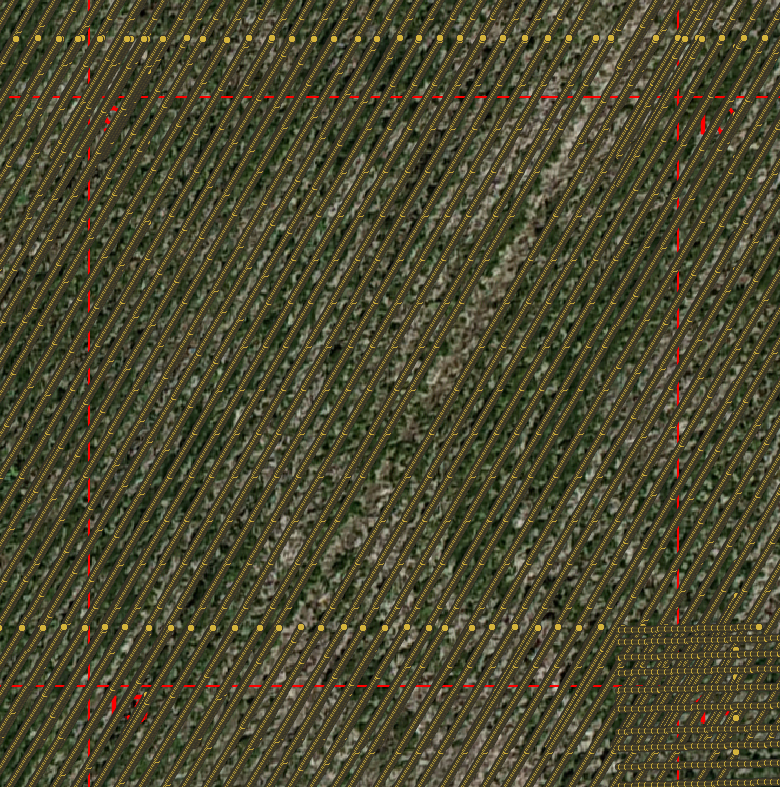

_images/Field_detected.png

Detected crop rows in an orthomosaic field.

Use crop-row-connector if you:

  • Use Crop Row Detector for row detection

  • Process agricultural imagery in tiles

  • Need to reconstruct complete crop row geometry

  • Want to analyze vegetation health along continuous rows

Quick Start

To install crop-row-connector:

pip install crop-row-connector

Running crop-row-connector:

crop-row-connector \
    path/to/row_information_global.csv \
    path/to/points_in_rows.csv \
    --distance_tolerance 0.12 \
    --angle_tolerance 7 \
    --output_path_connected_crop_rows path/to/connected_crop_rows.csv \
    --output_path_vegetation_points path/to/line_points.csv \
    --output_path_unhealthy_vegetation_segments path/to/unhealthy.shp \
    --output_path_healthy_vegetation_segments path/to/healthy.shp

See the Tutorial with Test Data for a walkthrough including the expected output.

Documentation Overview

This documentation is organized into four sections to help you learn and use crop-row-connector effectively:

Tutorials — Learn by doing

Step-by-step guides that walk through practical examples. Start here if you’re new to the tool.

How-To Guides — Solve specific problems

Practical recipes for common tasks when building interfaces or analyzing your own data.

Explanation — Understand the concepts

Conceptual guides that explain how and why crop row connection works.

Reference — Look up details

Technical API documentation for developers integrating the tool into applications.

Installation

crop-row-connector is a python package and can be installed with pip:

pip install crop-row-connector

See Installation for more advanced methods of installation.

Acknowledgement

the crop-row-connector tool was developed by SDU UAS Center as part of the project Præcisionsfrøavl, that was supported by the Green Development and Demonstration Programme (GUDP) and Frøafgiftsfonden both from Denmark.
